On-Line CCS-3000

The CCS-3000 chemical and mineral moisture analyzer is MoistTech’s NIR (Near Infrared) online moisture management for instant, non-contact measurement for coke, coal & sinter materials. Precision filters and algorithms have been incorporated to optimize performance under the demanding conditions in coke, coal and sinter processing.

The CCS-3000 mineral and chemical analyzer is renowned for its rugged design and ability to withstand the toughest manufacturing environments in the industry. Insensitive to material variations such as particle size, material height and color, the CCS-3000 analyzer provides continuous, reliable readings. It requires only a one-time calibration, is maintenance free and the drift free optical design allows operating personnel to confidently make immediate process adjustments based on real-time measurements.

Producing thousands of measurements per second, MoistTech’s CCS-3000 moisture management technology provides users the ability to enhance their on-line process to dramatically improve product quality. Proper moisture control produces energy savings, and plant efficiency with less material loss.

The CCS-3000 utilizes cutting edge elements that enable installation in some of the most extreme locations. MoistTech also has product loss software capability to ignore small gaps, inert material, foreign objects, and belt or screw conveyors are removed from the measurement calculation to provide one of the most precise moisture analysis.

CCS-3000 Moisture Sensor Installation Locations

The CCS-3000 mineral and chemical moisture analyzer has many areas of applications:

  • belt conveyor
  • screw and drag conveyors
  • down chutes and storage bins.

At-line: The addition of the base and stand option provides instant off-line or at-line measurement under on-line operating conditions.

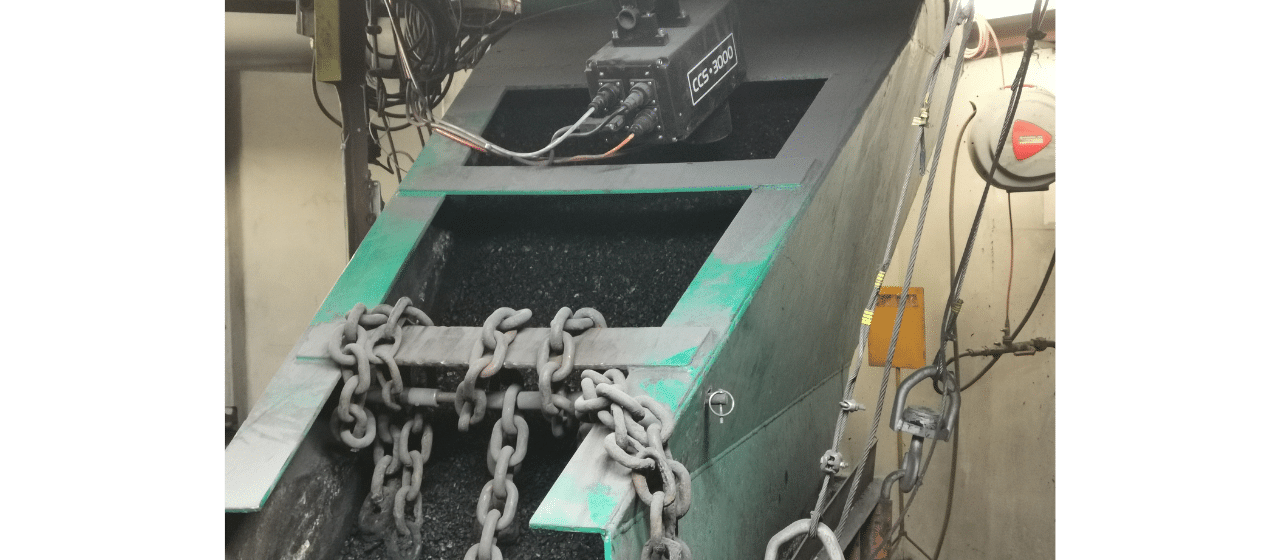

CCS3000 coal application

Specifications

  • Power: AC 110-220V
  • Moisture Range 0-95%
  • Accuracy +/- 0.1% to 0.01%
  • Repeatability +/- 0.1% of measured value
  • Dimensions 31cm x 18cm x16cm
  • Weight 7 Kilograms (15.5 lbs.)
  • Output (3) x 4-20mA

CCS-3000 Moisture Sensor Applications

MoistTech’s global reputation manufacturing NIR (near infrared) sensors in moisture control provides the standard in moisture detection equipment. The CCS-3000 series is specifically designed to be used on dark materials – NIR light is absorbed more intensely by dark materials and therefore has a different filter of detection for the most accurate of moisture levels in:

CCS3000 Coal Rocks Application

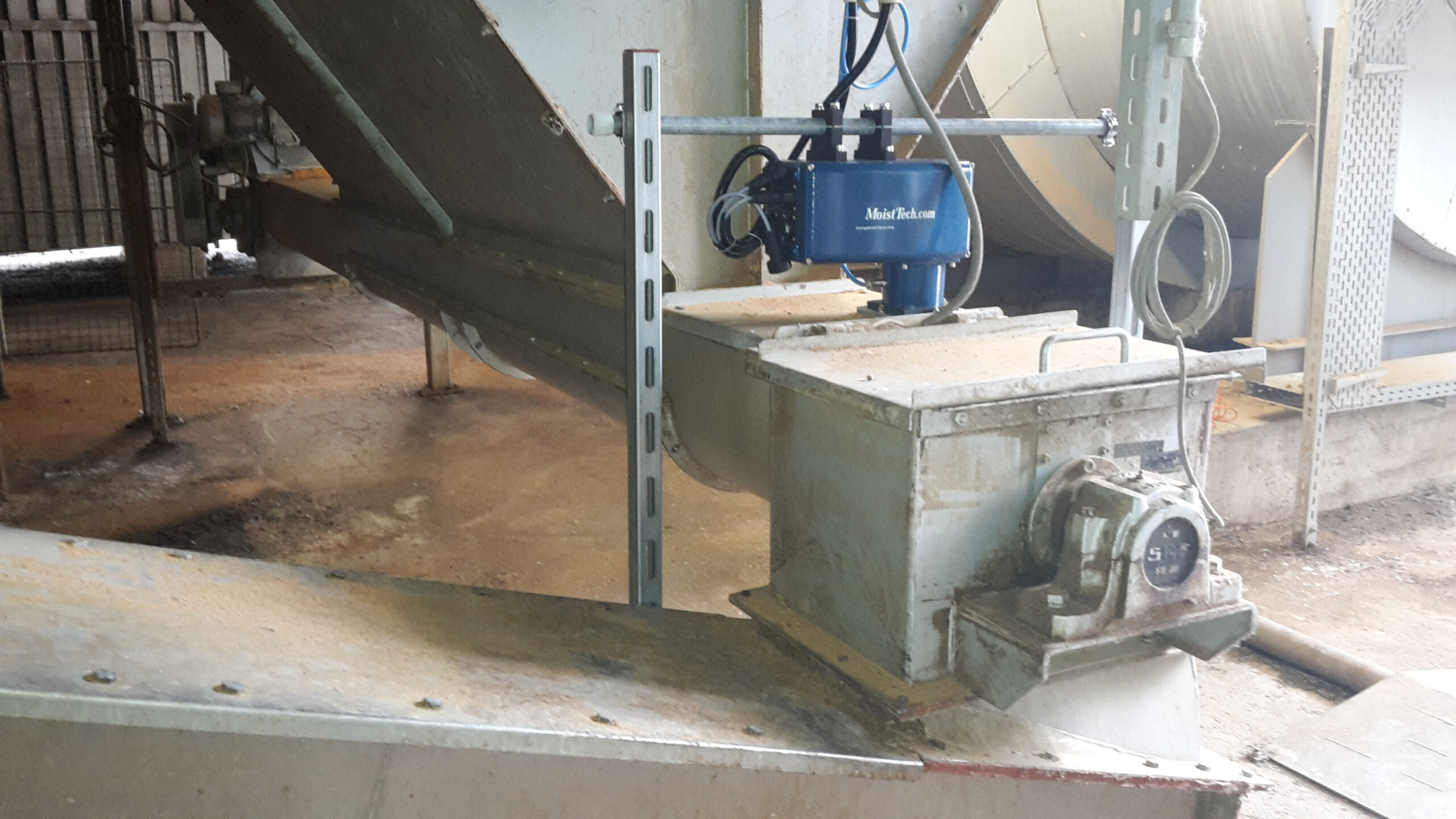

CCS300 with sensor monitor

The

Advantages of MoistTech Sensors

R

Product loss software capability

R

Large intense quartz halogen light source

R

Optical system that is several times more efficient than competitors

R

High speed motor – 100s more measurements per second

R

No product height effect 4 to 14 inches from material

R

Zero ambient or other light effect

R

No effect from dust, temperature or humidity

R

Display in % wet or % dry weight

R

Rugged industrial design

The

Key Benefits for Users

R

Low cost

R

Highest accuracy

R

Newest technology

R

Industry specific

R

Easiest installation & calibration

R

Very low maintenance

R

Most advanced software

R

Surface mount electronics

R

Product Quality Monitoring

Allows immediate production line adjustments to improve product quality and consistency
R

Process Optimization

Allows 100% monitoring of your production process to reduce product that is “out of specification”
R

Fuel Consumption Savings

Reduce your energy usage as the drying/cooking process can be controlled resulting in a reduction in energy consumption
R

Water Savings

Reduce your water usage by continuously monitoring moisture content
R

Dust Prevention

Help reduce the risk of explosions due to dust
